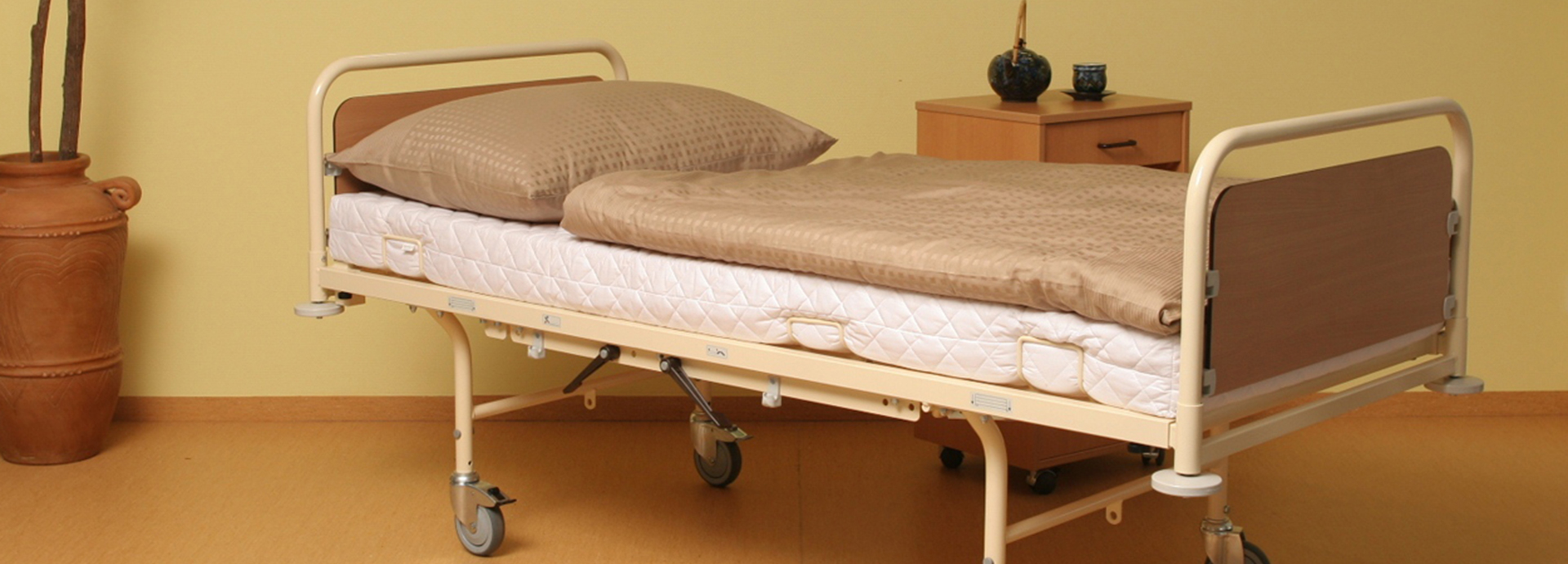

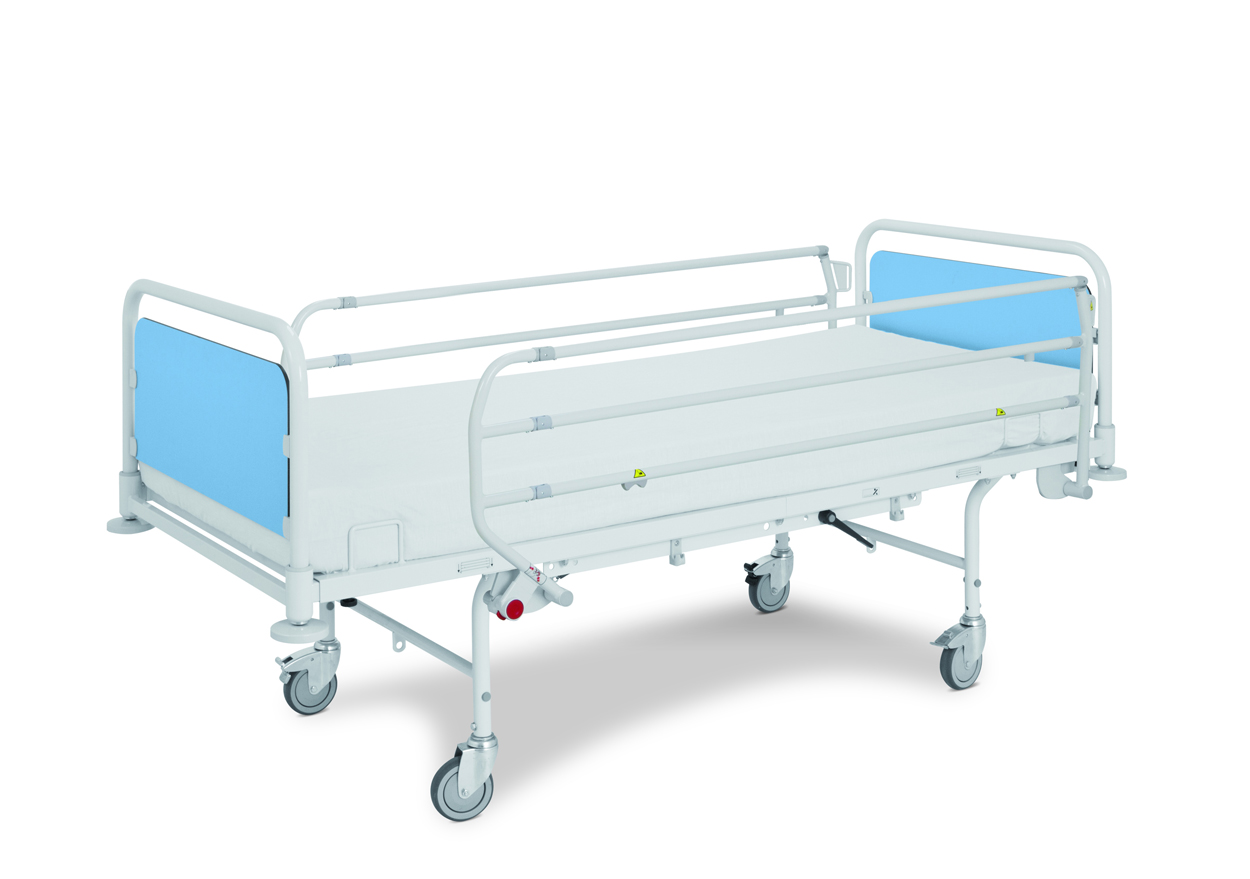

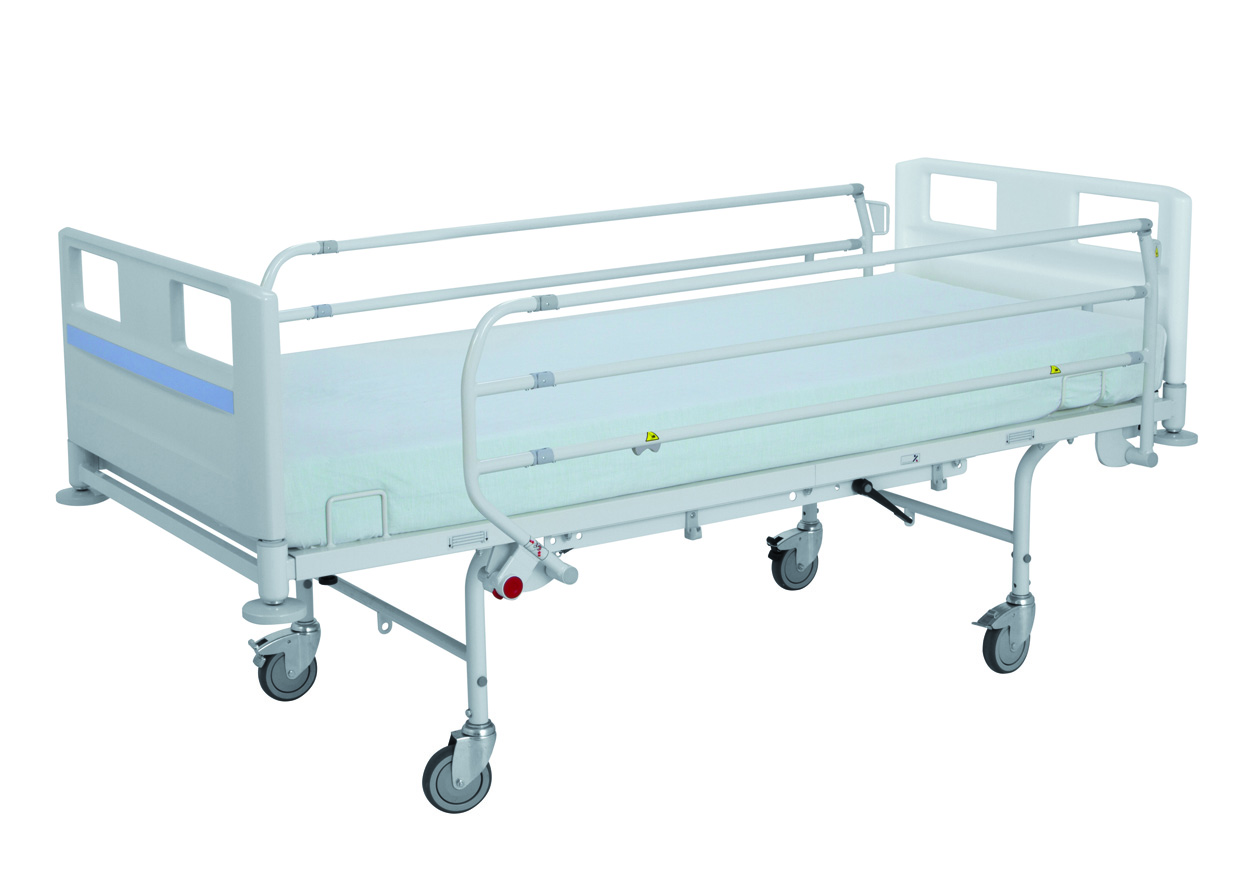

A basic, mechanical, mobile hospital bed with a fixed height mattress platform
The bed is equipped with two gas springs enabling the positioning of the backrest. STABILUS – gas springs guarantee reliability and a long service life.
As standard, all beds are equipped with holders for trapeze and infusion stands. The holders are situated at the corners of the head end of the bed.
The calf section can be mechanically adjusted to 5 height levels by means of a ratchet.

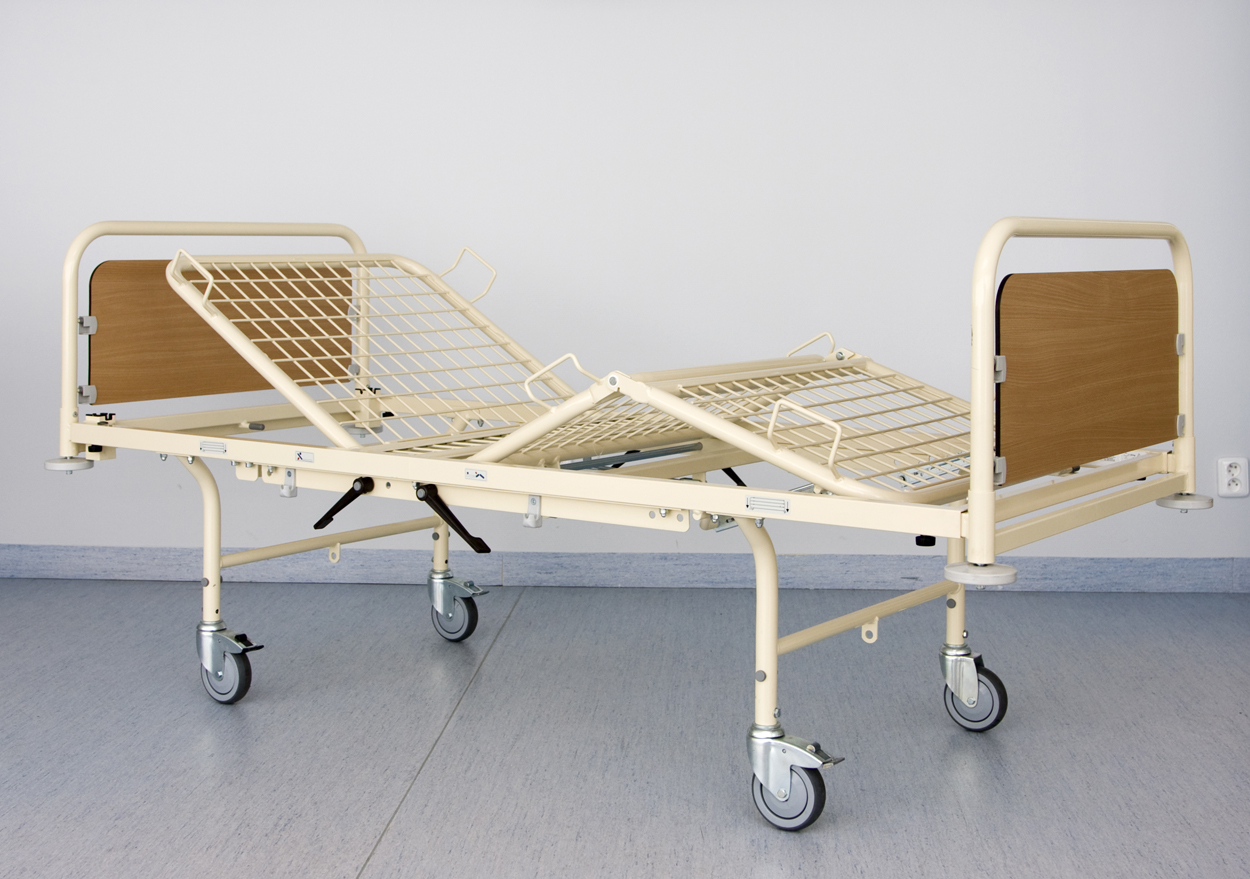

The mesh in the mattress platform sections are welded under the upper edge of the frame to prevent risk of abrasions and injuries to the nursing staff when changing the linen.

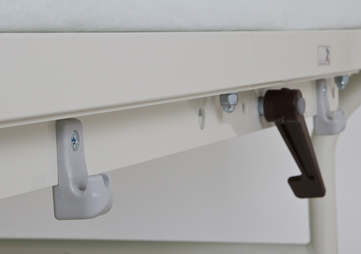

Bars with plastic hooks are situated on both sides of the bed. The bars can be used to hang small accessories (e.g. holder for slippers, basket for a bedpan, Redon bottle holder).

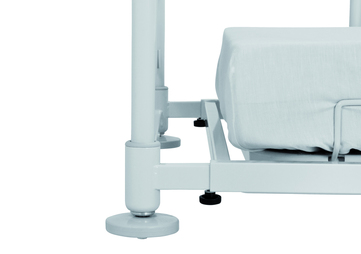

The length of the bed can be extended by up to 20 cm. The foot crossbar can be extended in length by 10 cm and another 10 cm extension is available at the head section.
|
Outer dimensions (Side rails up) |
213 cm x 106 cm |
| Mattress platform Retraction/Extension | 0/+20 cm |
| Recommended Mattress Size | 200 cm x 86 cm x 14 cm |
| Max. Mattress Height | 18 cm |
| Bed Height | 55 cm |
| Maximum Backrest Angle | 75° |
| Maximum Thigh Rest Angle | 45° |
| Trendelenburg/Reverse Trendelenburg Position | +0°/-0° |
| Height of Side rails (above Mattress Platform) | 40,5 cm |
| Weight (Basic Equipment) | 70 kg |
| Safe Working Load | 170 kg |
| Max. Lifting Pole Load | 75 kg |
| Max. Patient Weight | 150 kg |
|
Height adjustment |
N/A |
| TR/ATR tilt adjustment | N/A |
| Backrest adjustment | Mechanical / Gas spring |
| Thighrest adjustment | Mechanical / Gas spring |
| Calfrest | N/A / mechanical ratchet |
| Bed extension | Manual |
