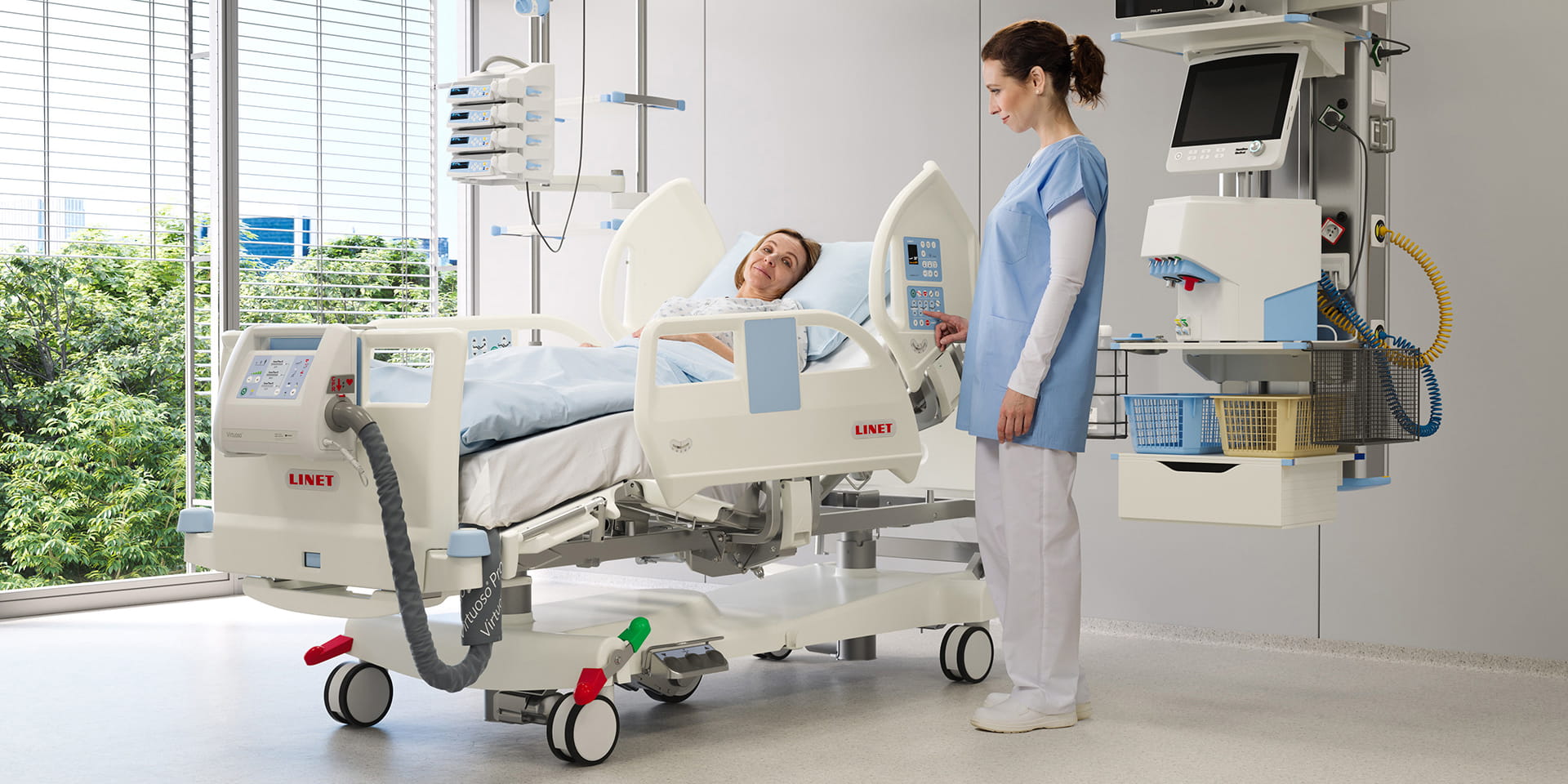

Eleganza 4 is an electrically positionable bed – designed especially for Critical Care settings. The bed platform gives you flexible and customised solutions to keep all care activities and all special patient needs together with an open architecture of different technical features. You can choose the right bed for each care and medical application, patient conditions and budget.
Focus on the upper body
With the integrated control elements in both upper siderails, the caregiver has direct access to all functions and adjustment options of the bed.
Free-hands strategy
The bed’s height adjustment and the special examination position can be set by the foot control. The nurse’s hands are free to care for or handle the patient.
One-button philosophy
The control board is easy to access and very simple to manage. Most of the positioning and emergency functions are set at the touch of one button.
Cardiac Chair
This position helps patients suffering from respiratory disorders and assists the functions of the cardiovascular system. It brings patients comfort when reading and eating.
For Greater Independence
The patient has immediate access to two separate controls for basic bed positioning. This is an integrated control in the siderails and a separate patient control that can be suspended on the siderails.
Integrated Scales
The measurement of the patient’s current weight can be performed comfortably and without stress for both - patient and nursing staff - and without additional risks of patient movement.
X-ray
Thanks to the X-ray transparent mattress platform and special bed construction, lung X-rays can be taken without any need for the physical handling of the patient.
i-Drive Power
The integrated, motorised 5th castor and patient transport system minimises staff assistance in pushing the bed. The risks in bed patient transport are increased for maximum safety and convenience.
i-Brake
The automatic brake prevents falls caused by an unstable bed, especially during bed exit.
Bed Exit Alarm
The system monitors the patient’s movement on the bed and bed exit. It can be set in two modes depending on the patient’s demand and mobility.
The Siderails Concept
The siderails concept and height optimises special patient needs like usage of different passive and active mattress systems or fall prevention.
Night light
This light function supports a better patient orientation at night and provides a feeling of safety.
30° and 45° stop
The backrest stops automatically at a tilt of 30 and 45 degrees.
Safestop
The bed stops automatically when moving to the lowest position.
EMR ready
The Eleganza 4 is technologically equipped to send out data to the hospital information system.
The mattresses
The wide range of the passive, hybrid and active LINET mattress portfolio supports individual patient needs regarding injury prevention. Innovative technologies support a better outcome at the point of care with evidence-based recommendations.
The Ergoframe
This feature increases patient comfort and ergonomics when lying on the bed and minimises lung and abdominal area compression.
The Mobilization
Thanks to its special functions the Eleganza 4 helps deal with the problem of mobilization
Mobi-Lift® handrail
The Mobi-Lift® is used to firmly support the patient when sitting or exiting. The patient can set the bed for an individual and easy exit using the up or down button.
The comprehensive bed platform of Eleganza 4 allows you to customise the right bed for the specific needs of each critical care area. Different features of the open architecture of Eleganza 4 can meet your demanding clinical environment and the need to control costs.
|
Technical parameters |
|
|
External dimension |
217,5×100 cm |
|
Bed extension |
0–22 cm |
|
Mattress dimensions |
208 × 90 cm |
|
Siderails Height above Mattress Platform |
45 cm |
|
Height adjustment |
41–79 cm |
|
TR/ATR tilt |
14°/14° |
|
Backrest angle |
65° |
|
Thighrest angle |
25° |
|
Safe working load |
250 kg |
|
Maximum patient weight |
185 kg |
|
|
