Your benefits at a glance

The new stylish design of the Praktika healthcare bed provides practical use of the bed's modern features in combination with a high level of infection control.

A durable construction of high quality according to norm EN 60601- 2-52.

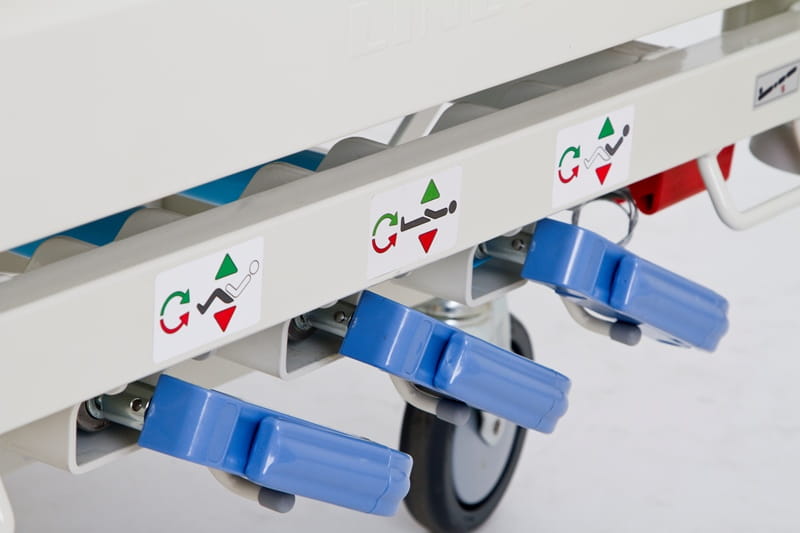

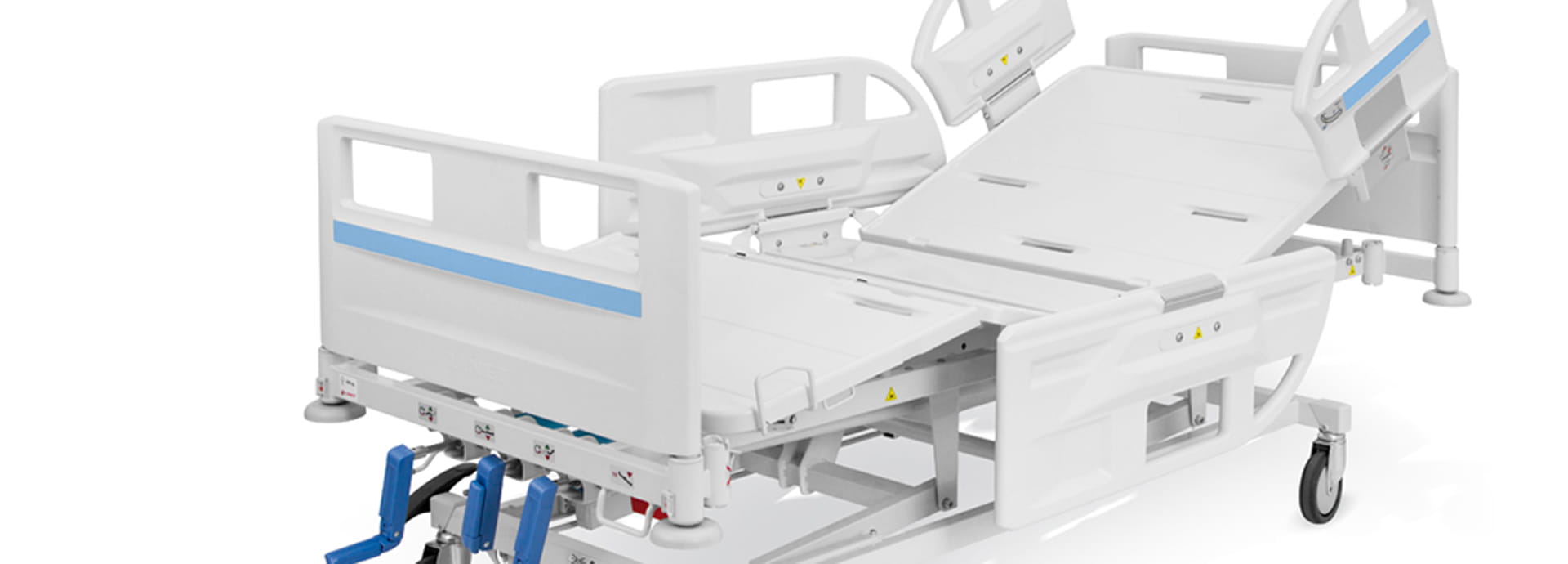

The backrest and thigh rest can be adjusted by a crank mechanism and the calf rest can be adjusted by using a handle. Praktika 2 can also be adjusted to the TR/ATR position and allows height adjustment of the mattress platform by using the third crank.

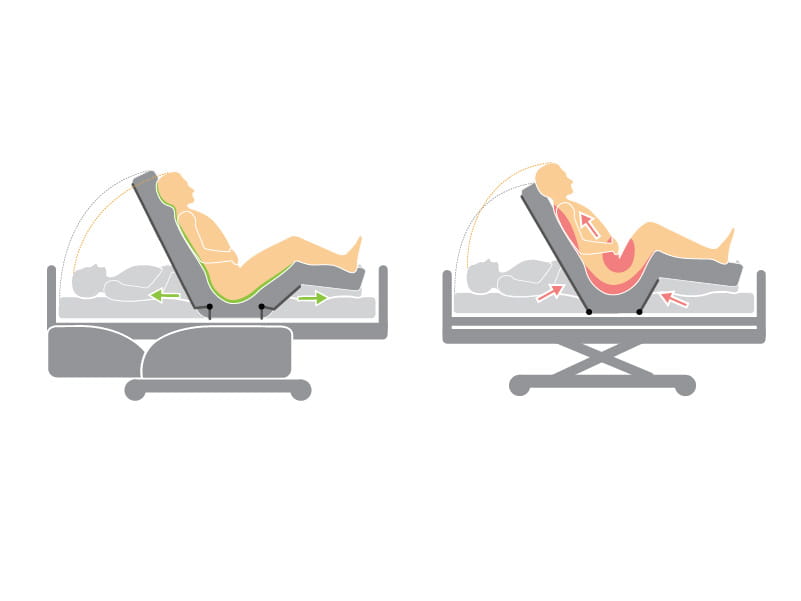

Ergoframe creates optimal conditions for better pressure relief in the body parts that are at higher risk.

Technical features

Safe working load:

200 kg
Max. patient weight: 165 kg
Outer dimensions: 218 x 99,5 cm

  • mechanical operating
  • adjusted by crank mechanism
  • plastic side rails: yes
  • single collapsible  side rails: yes
  • protector and extender for single side rails: yes
  • 4-sections mattress platform: yes
  • removable plastic cover for mattress platform: yes

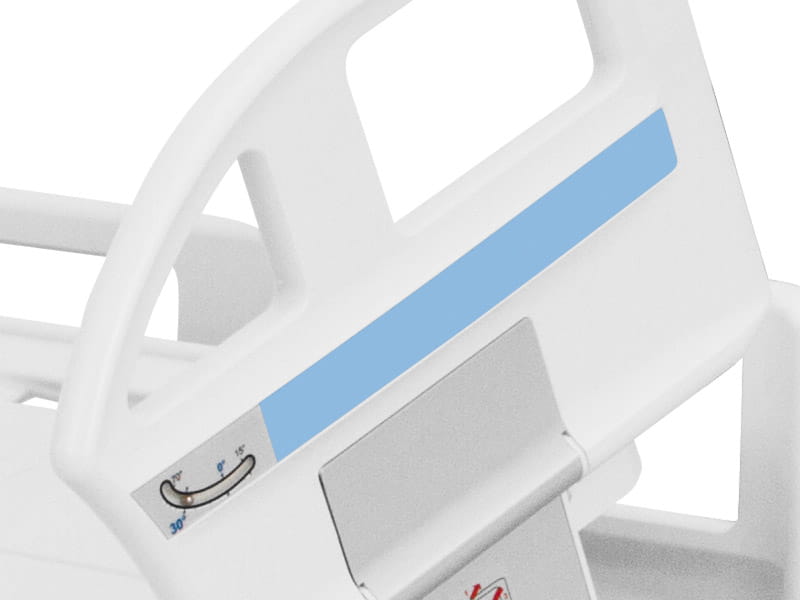

removable plastic bed ends with locks

RAL 9002, RAL 9006, standard decors for bedends and side rails.

  • 4 horizontal corner bumpers
  • 2 optional vertical bumpers
  • accessory rail and accessory holders

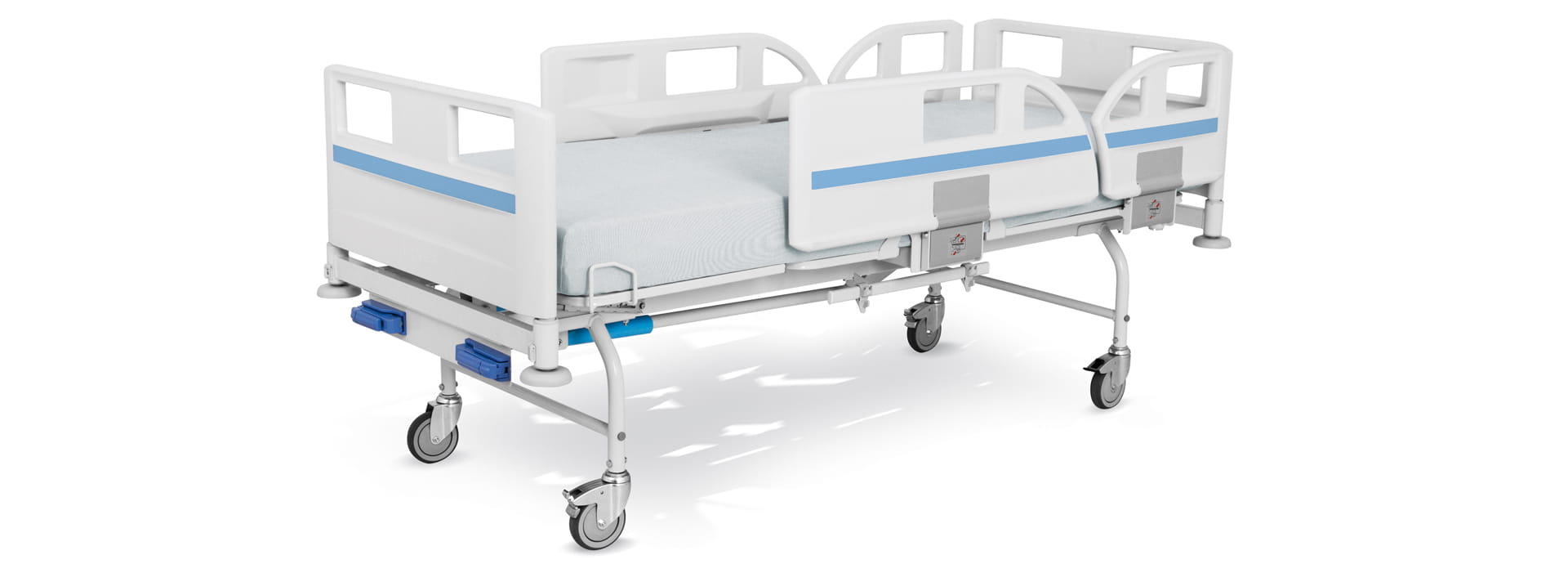

Praktika 1

  • Castors: 125 mm castors
  • Brakes: individual brakes, as option one brake for foot end castors

Praktika 2

  • Castors: 125 mm separately braked or 150 mm centrally braked

 Praktika 1

Fixed height of mattress platform:

55 cm
Max. backrest angle: 70°
max. thighrest angle: 34°

  Praktika 2

adjustable height of mattress platform:

42-76 cm, TR/ATR 12°/12°
Max. backrest angle: 70°
max. thighrest angle: 34°





Instructions for Use for Praktika 1 & 2
2023-06-07 Instructions for Use for Praktika 1 & 2 in English UK, English (general), English MEA, English ASIA in Linet design
Instructions for Use for Praktika 1 & 2
2023-07-21 Instructions for Use for Praktika 1 & 2 in English UK, English (general), English MEA, English ASIA in Linet design
